Description

In the context of artificial neural networks, the Exponential linear unit (ELU) is an activation function defined as:

where x is the input to a Artificial Neuron.

from matplotlib import pyplot as plt
import numpy as np

def tanh_forward(x):
    return (x >= 0.0) * x + (x < 0.0) * (np.exp(x) - 1.0)


x = np.arange(-7,7)
y = tanh_forward(x)

plt.style.use('fivethirtyeight')
fig, ax = plt.subplots()
ax.plot(x, y)

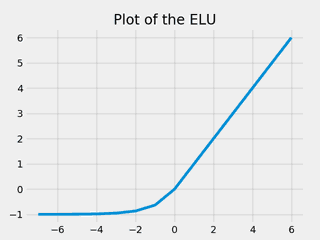

ax.set_title("Plot of the ELU")
plt.show()

Exponential linear unit (ELU) derivative with respect to x defined as:

ELU speeds up learning and alleviates the vanishing gradient problem.Exponential linear unit (ELU) used in computer vision and speech recognition using deep neural nets.

TensorFlow form of Exponential linear unit (ELU):

tf.nn.elu(
    features,
    name=None
)

Pytorch form of Exponential linear unit (ELU):

class torch.nn.ELU(alpha=1.0, inplace=False)

Forward propagation EXAMPLE

/* ANSI C89, C99, C11 compliance                                                                        */
/* The following example shows the usage of Exponential linear unit (ELU) function forward propagation. */
#include <stdio.h>
#include <math.h>


float elu_forward(float x, float alpha){
   float r_elu = (x > 0.0f) * x + (x <= 0.0f) * alpha * ((float)exp(x) - 1.0f);


   return r_elu;
}

int main()  {
   float r_x, r_y;


   r_x = 0.1f;
   r_y = elu_forward(r_x, 1.0f);
   printf("ELU forward propagation for value x: %f\n", r_y);
   return 0;
}

Backward propagation EXAMPLE

/* ANSI C89, C99, C11 compliance                                                                         */
/* The following example shows the usage of Exponential linear unit (ELU) function backward propagation. */
#include <stdio.h>
#include <math.h>


float elu_backward(float x, float alpha){
   float r_elu = (x > 0.0) * x + (x <= 0.0) * alpha * ((float)exp(x) - 1.0f);


   return (x > 0.0) + (x <= 0.0)*(r_elu + alpha);
}

int main()  {
   float r_x, r_y;


   r_x = 0.1f;
   r_y = elu_backward(r_x, 1.0f);
   printf("ELU backward propagation for value x: %f\n", r_y);
   return 0;
}
